Specifications
QD double girder overhead crane
Lifting Capacity:5t
Span:10.5-31.5m
Working Class:A3-A7
AmbientTemperature:-25~+40C
double girder crane Product Feature:
1. Light Dead Weight
2. Small Occupied Space
3. High Working Performance
4. Easy Operation
5. Safe and Reliable
6. Low Operation and Maintenance Costs
♥ double girder overhead crane is your best choice, which help you on heavy workshop working!
Product Details of double girder overhead crane
Overall Feature
The machine: Novel structure, attractive appearance and good technics;
Operation: Flexible and smooth, safe and reliable
Mechanical Part
Double girder, welding box beam, camber meet national standard;
Adopt high quality carbon steel, Q235B or Q345B;
Main and end girder connected through level 10.9 high-strength bolt
Crane drive: IP54 or IP44, level F insulation
Efficiency brake, long life
Electric Part
Security trolley line or angle steel trolley line
The power supply of Travelling trolley adopt flat cable
Smoothly sliding, overall nice
Safety Protection
For outdoor crane, should equipped with hoist mechanism, electrical box and rain cover of driving mechanism
Install collision prevention device and sound & light alarm device
Controlling Ways
Ground controlling and cab controlling
Operating cab: open style and close style, left or right installation
Direction of entrance: side, end and top
Choose according to customer's different requirement
Alternative Functions
Speed regulation of each operating mechanism (1:10 or more)
Overload limitation, alarm display, load weighting and display
Hook distance changes of main and auxiliary hook
PLC Controller, fault detecting, display record and print system

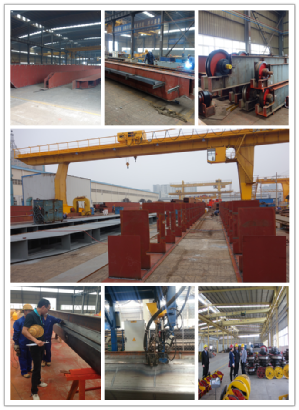

The production line
|
|

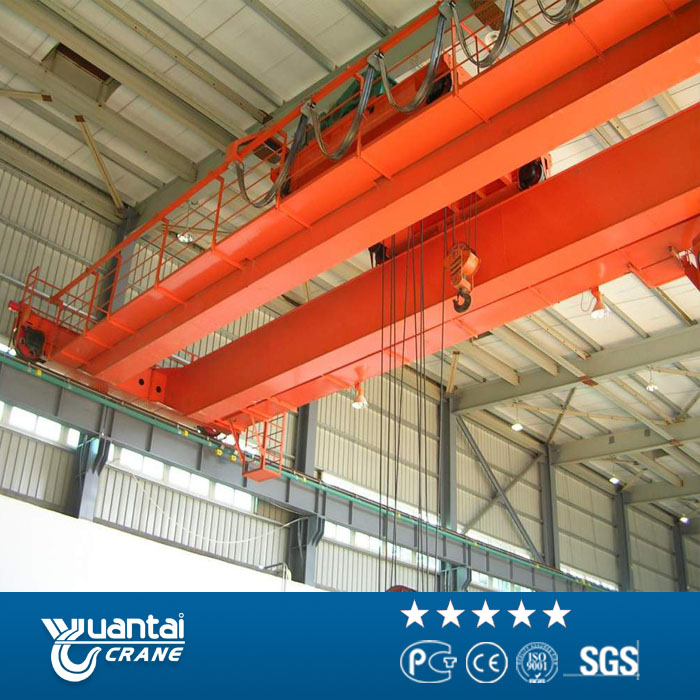

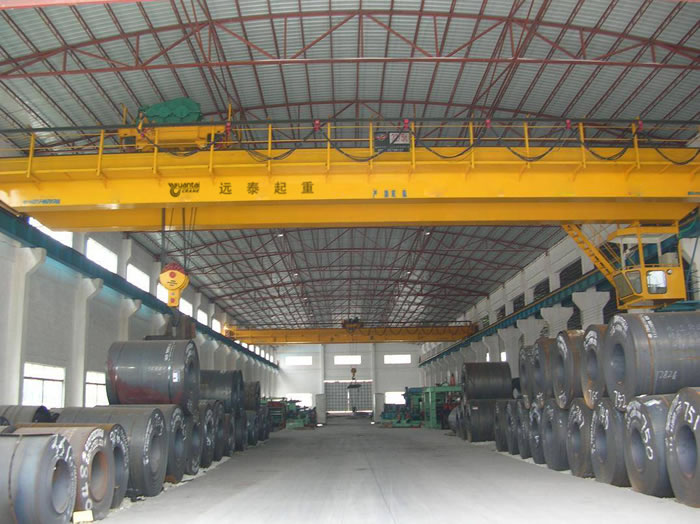

YT QD Type double girder overhead crane 5 ton for sale Images
|
